FEFCO 0201: Folding cartons

Folding cartons (according to FEFCO 0201) are among the packaging classics. They are easy to construct, can be set up in no time at all and can be freely configured as desired. You can also freely define the format and choose the material that suits you from our wide range. But most importantly, our FEFCO-0201 folding cartons provide reliable protection for your products, whether as a shipping box or product packaging.

What's more, your folding cartons can be fully printed at packaging warehouse and individually designed according to your wishes. Simply use the online configurator to tell us what your idea of the perfect folding carton looks like - and we'll turn it into reality for you quickly and in the highest quality. You do not have to observe a minimum order quantity. We will also be happy to produce a sample for you.

Your individual FEFCO 0201 folding cartons:

  • customized production: free choice of format
  • choice of three flutes of different thickness
  • up to 100 % recyclable cardboard
  • full-surface printing and high-quality finishes
  • no minimum order quantity and fast delivery

Highest quality

Materials for customised American cardboard boxes - FEFCO 0201

E-flute
B-flute
EB-flute

E- flute white/white

Material thickness 1,5 mm | Fine flute

White outside, white inside

Close wave spacing (approx. 3 mm) | very good printability

Load capacity up to approx. 7 kg (with even weight distribution)

For product and shipping packaging

Printing in digital printing, offset printing or flexographic printing

Recyclable via waste paper

E- flute white/white

E- flute white/brown

Material thickness 1,5 mm | Fine flute

White outside, brown inside

Close wave spacing (approx. 3 mm) | very good printability

Load capacity up to approx. 7 kg (with even weight distribution)

For product and shipping packaging

Printing in digital printing, offset printing or flexographic printing

Recyclable via waste paper

E- flute white/brown

E-flute brown/brown

Material thickness 1,5 mm | Fine flute

Brown outside, brown inside

Close wave spacing (approx. 3 mm) | very good printability

Load capacity up to approx. 7 kg (with even weight distribution)

For product and shipping packaging

Printing in digital printing, offset printing or flexographic printing

Recyclable via waste paper

E-flute brown/brown

B- flute white/white

Material thickness 3 mm | Fine flute

White outside, white inside

Close wave spacing (approx. 4.8 mm) | very good printability

Load capacity up to approx. 14 kg (with even weight distribution)

For product and shipping packaging

Printing in digital printing, offset printing or flexographic printing

Recyclable via waste paper

B- flute white/white

B- flute white/brown

Material thickness 3 mm | Fine flute

White outside, brown inside

Close wave spacing (approx. 4.8 mm) | very good printability

Load capacity up to approx. 14 kg (with even weight distribution)

For product and shipping packaging

Printing in digital printing, offset printing or flexographic printing

Recyclable via waste paper

B- flute white/brown

B-flute brown/brown

Material thickness 3 mm | Fine flute

Brown outside, brown inside

Close wave spacing (approx. 4.8 mm) | very good printability

Load capacity up to approx. 14 kg (with even weight distribution)

For product and shipping packaging

Printing in digital printing, offset printing or flexographic printing

Recyclable via waste paper

B-flute brown/brown

EB flute white/white

Material thickness 4.5 mm | Fine flute

White outside, white inside

Mixed wave spacing (3–5 mm) | very good printability

Load capacity up to approx. 32 kg (with even weight distribution)

For shipping packaging

Printing in digital printing, offset printing or flexographic printing

Recyclable via waste paper

EB-Welle außen weiß, innen weiß

EB flute brown/brown

Material thickness 4.5 mm | Fine flute

Brown outside, brown inside

Mixed wave spacing (3–5 mm) | very good printability

Load capacity up to approx. 32 kg (with even weight distribution)

For shipping packaging

Printing in digital printing, offset printing or flexographic printing

Recyclable via waste paper

EB-Welle außen braun, innen braun

Configure American cardboard boxes - FEFCO 0201

Configure custom Cardboard boxes

Tear-off & adhesive strips

Tear-off & adhesive strips

Tear-off and adhesive strips make packing and opening your custom cardboard boxes particularly convenient. You save time, reduce material consumption and offer professional handling.

Stable corrugated cardboard

Stable corrugated cardboard

Custom cardboard boxes made from E-flute, B-flute or EB-flute cartons offer the right stability for every product. This allows you to reliably protect your products during shipping and meet the highest quality standards.

State-of-the-art printing technology

State-of-the-art printing technology

With our custom cardboard boxes, you get brilliant print images and complete design freedom – we choose between digital, offset and flexographic printing for your print run and showcase your brand perfectly.

Special colours / Pantone

Special colours / Pantone

Custom cardboard boxes with special colours or Pantone colours ensure consistent branding and a strong brand impact. This allows you to achieve a professional, recognisable appearance.

Window cut-out

Window cut-out

Custom cardboard boxes with viewing windows showcase your product before it is opened, increase trust and ensure a special unboxing experience.

Matt, glossy & soft-touch surfaces

Elegant surfaces

Custom  Cardboard boxes with matt, glossy or soft-touch surfaces are visually and haptically appealing. High-quality finishes ensure a genuine premium brand experience.

Recycling corrugated cardboard

Recycling

Corrugated cardboard shipping boxes are resource-efficient and can be recycled as waste paper. This allows you to combine stability during shipping with sustainable packaging.

Hot foil stamping

Hot foil stamping

Custom Cardboard boxes with hot foil stamping offer an exclusive premium look. Glossy effects attract attention and strengthen your brand presence.

Berater Nils Harder

Nils Harder
CEO & Folding Carton Specialist

Let's take your Cardboard boxes to the next level together!

Would you like to implement your packaging professionally? Our team will provide you with personalised support for all questions relating to construction, materials, design and printing, and will work with you to find the right solution. We will reliably accompany you from the initial idea to implementation and ensure that your packaging protects, inspires and fits into your process. Feel free to get in touch – we look forward to hearing from you.

Tel.: +49 (0) 751 951 440 0

DISCOVER OUR RANGE OF CARDBOARD

Cardboard boxes by application, size & printing

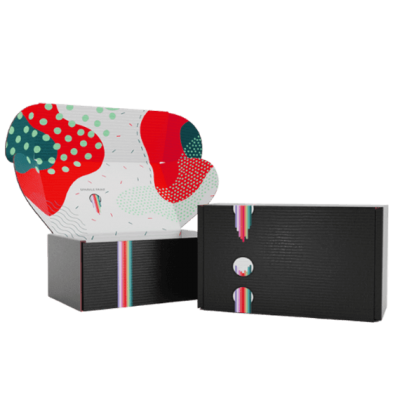

Cardboard boxes

Individuelle Versandverpackungen für einen sicheren Versand.

Hochwertige Materialien
Learn more
Shipping packaging

Individuelle Versandverpackungen für einen sicheren Versand.

Hochwertige Materialien
Learn more
Maxi letter boxes

Individuelle Versandverpackungen für einen sicheren Versand.

Hochwertige Materialien
Learn more
Printed cardboard boxes

Individuelle Versandverpackungen für einen sicheren Versand.

Hochwertige Materialien
Learn more
Julia Volgger Sales Manager
>4000 CUSTOMERS PLACE THEIR TRUST IN US

Make your American cardboard boxes eye-catching!

Do you need American cardboard boxes that suit your product? We'll take care of it – no matter whether small, large or really challenging. We have been printing in Germany for three generations and combine experience with modern technology. You get quality you can rely on and people who think for themselves. Together, we will turn your idea into the perfect packaging.

Dextro Energy Logo
Esjot Logo
mymuesli logo
Störtebekker Logo
Hugendubel Logo
Neuroth Logo

CONTACT US

How can we help you?

Kontaktformular grüne Schrift
Tell us about your packaging project!

We would be delighted if you could send us a message and give us an insight into your requirements. The more specific your information is, the better we can advise you and suggest a suitable solution.

We will get back to you as soon as possible!

American cardboard boxes directly FROM THE MANUFACTURER

Your partner for customised Cardboard boxes

Cardboard boxes Made in Germany

We value regionality and love for our homeland. That is why your American cardboard boxes are produced in the heart of Germany.

Sustainable corrugated cardboard

We rely on sustainable and regional corrugated cardboard that is recyclable, manufactured in a CO₂-saving manner and consists largely of secondary fibre materials.

Personal contact person

You will have a direct contact person at all times who will advise you individually and accompany you from your enquiry to the delivery of your American cardboard boxes (FEFCO 0201).

FEFCO 0201 at packaging warehouse:
Your advantages at a glance

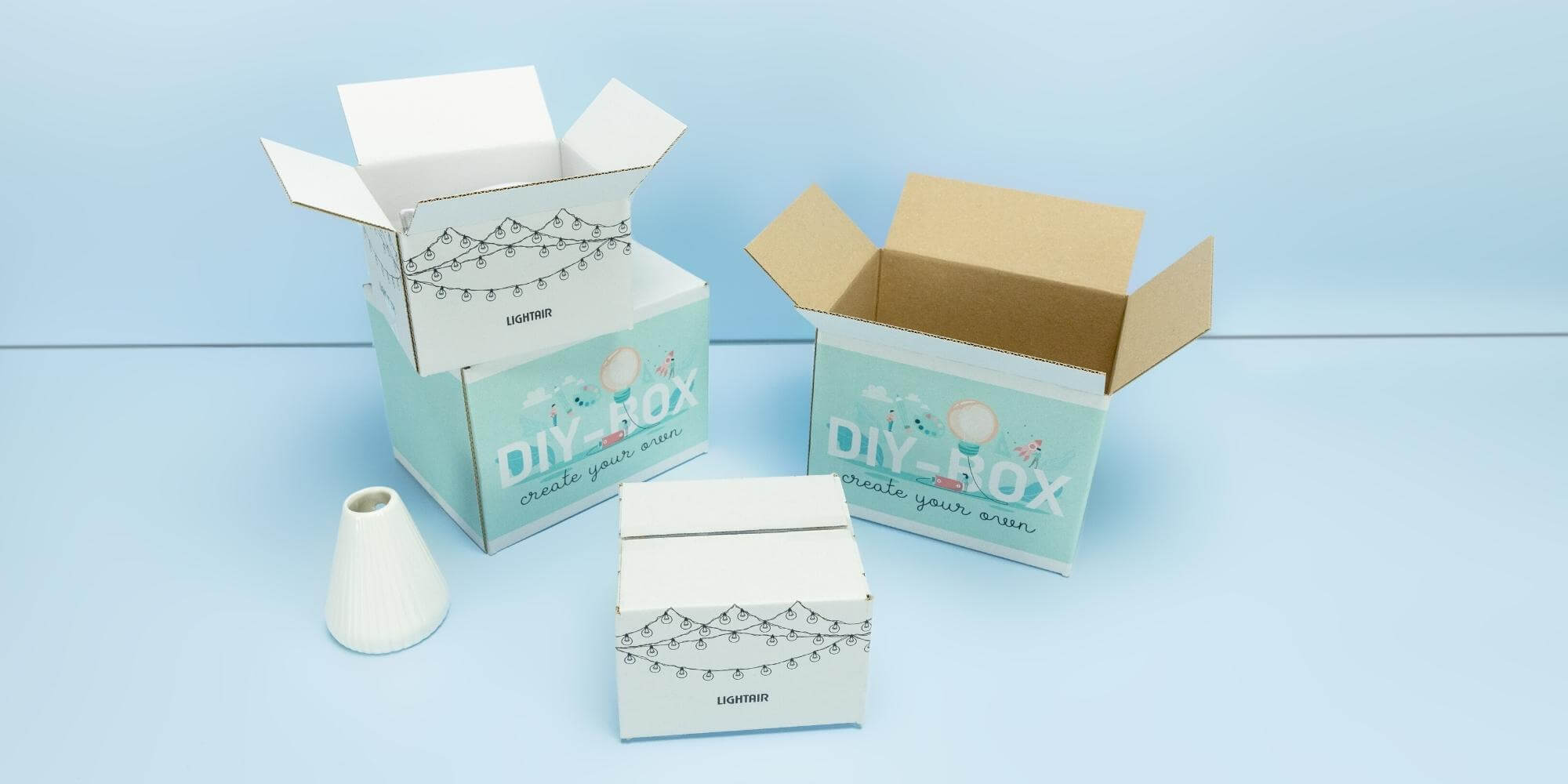

FEFCO 0201 Faltkarton

High quality

With FEFCO 0201 boxes, you know exactly what packaging you're getting. But that's not the only standard we meet. Because with our high-quality materials and production processes, we ensure the highest quality all around

Versatile use

Folding cartons are used in various industries, mainly as shipping boxes. However, they are also ideally suited as primary packaging for sensitive products.

Cartons from Germany

We at packaging warehouse produce exclusively in Germany. This way we keep your supply chains as short as possible - and you contribute to the protection of the environment and the preservation of local jobs.

Sustainable packaging

With our corrugated cardboard folding cartons, you can rely on a paper-based and therefore very sustainable solution. Depending on your configuration, the corrugated cardboard boxes are up to 100% recyclable.

FEFCO-ESBO-CODES

The FEFCO-ESBO-CODES serve as an internationally valid standard for the classification of corrugated and solid board packaging. The coding system was developed as early as the 1960s by the European Federation of Corrugated Board Manufacturers (FEFCO) - with the aim of breaking down language barriers in the European corrugated board industry. However, the codes are now in use worldwide and, since the participation of the European Solid Board Organization (ESBO, formerly ASSCO), also include packaging made of this very material. Today, the FEFCO catalog contains about 200 packaging materials, each of which has a unique identification code. Learn more about FEFCO codes here.

American cardboard boxes according to FEFCO 0201: Assembly & setup

What is a FEFCO 0201 American cardboard box?

FEFCO 0201 folding cartons are extremely simple in design and consist of only one piece of corrugated cardboard. At its factory edge there is a flap, which is glued to the opposite edge of the carton. This step takes place during production - so we deliver your cartons pre-glued and ready for use.

Along the lid and bottom opening are four flaps. When setting up and closing, you simply fold them inwards - first the two closures on the wide side, then those on the long side.

Important: The carton flaps do not catch. Without additional bonding, they do not provide a firm hold for the carton contents. To pack your goods securely, you will therefore need a parcel or strapping band.

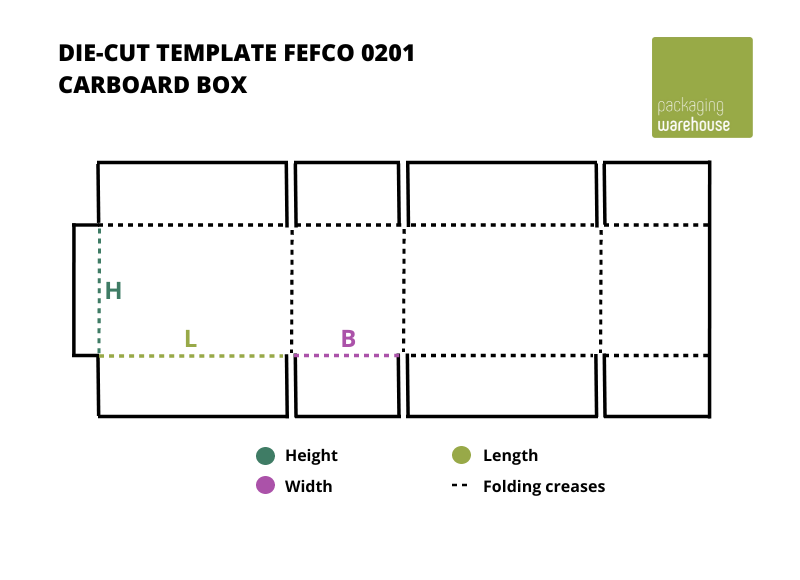

Structure FEFCO 0201 American cardboard box

What makes American cardboard boxes special?

Folding cartons are mainly used as shipping packaging in e-commerce - it does not matter whether B2C or B2B. Also, the robust corrugated cardboard boxes are used as product packaging, especially as a solution for fragile and sensitive goods.
Folding cartons are a popular packaging choice for a number of reasons. In addition to their excellent protective properties, the ease of handling, the wide range of design options and the sustainability aspects are the key factors with which corrugated cardboard boxes are able to convince.

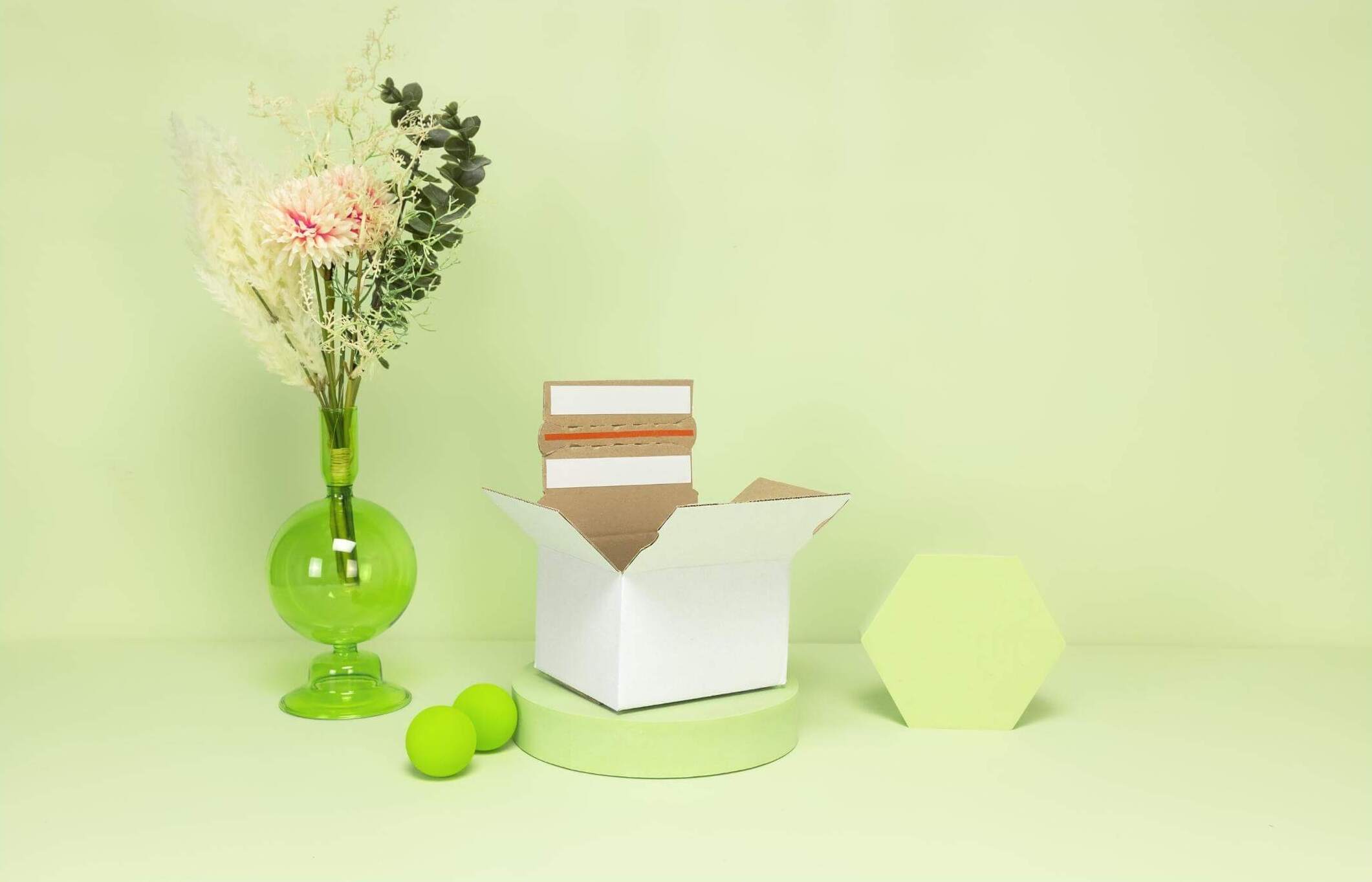

Faltkarton als Warenschutz

Reliable goods protection

The transport routes taken by goods in e-commerce are often long, bumpy and so always associated with a certain risk - especially with regard to sensitive goods. However, this can be minimized very easily with the right choice of packaging.

Corrugated cardboard is convincing here for several reasons. One of the main advantages is the high protective performance with only very low material consumption and own weight. Because although corrugated cardboard consists of several, but very thin layers of paper, the material has excellent barrier properties.

Firstly, the corrugated walls form a multilayer barrier against external influences such as moisture, dirt and UV rays. Secondly, the inner corrugated layer (along with its cavities) forms a buffer zone that effectively absorbs scratches and impact damage.

Recycling & Sustainability

Goods protection is one thing, environmental protection often another. But with our FEFCO-0201 folding cartons, it's easy to ensure both at the same time. Because corrugated cardboard not only forms a robust shell, but also scores points with regard to recycling.

On the one hand, all corrugated cardboard in our range consists of 99% recycled waste paper - the remaining percentage is accounted for by newly added virgin fibers. On the other hand, the material is nevertheless fully recyclable again after use.

The various recycling codes on the packaging also provide precise information on what material a product is made of and how it can be properly recycled.

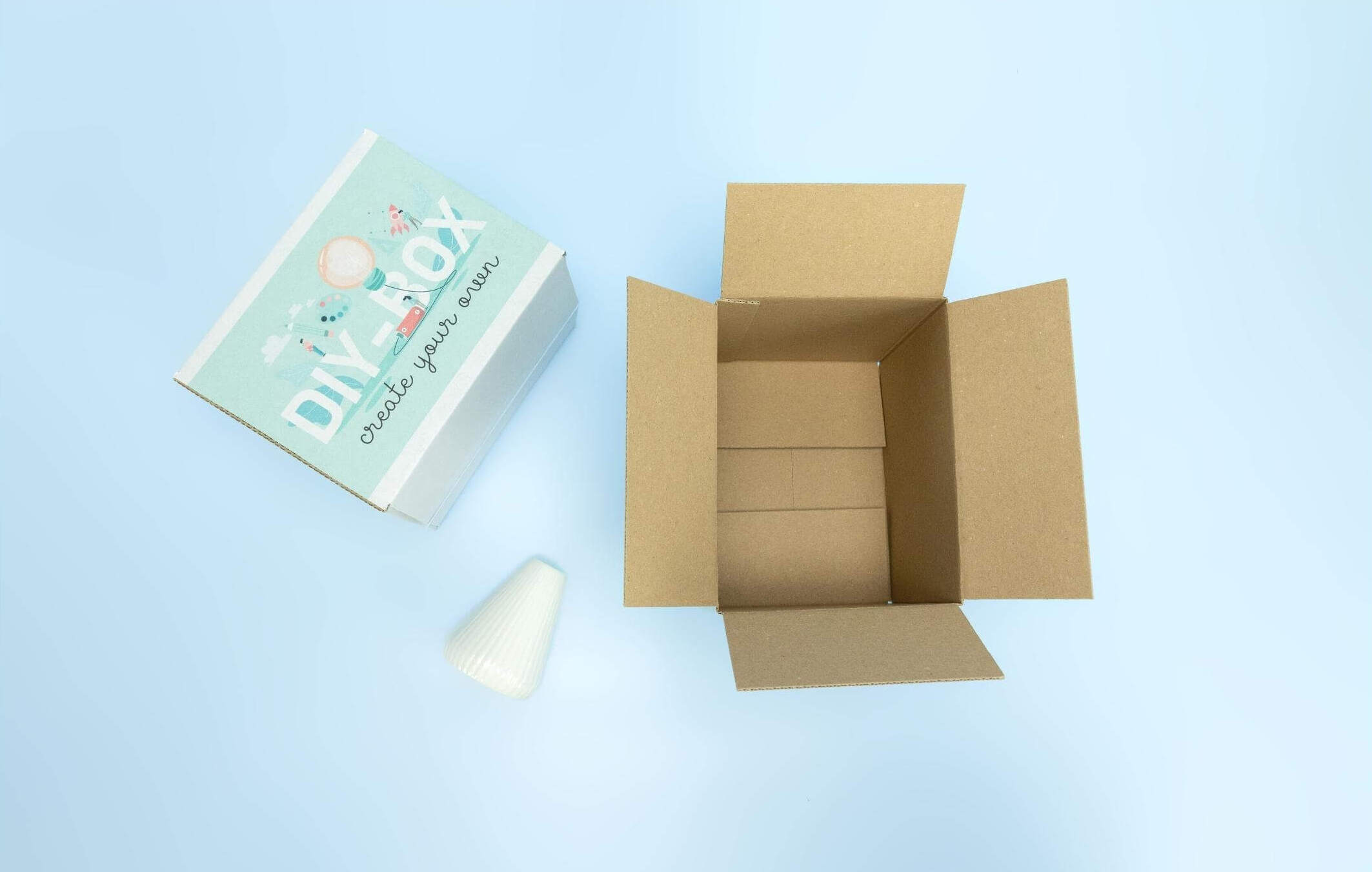

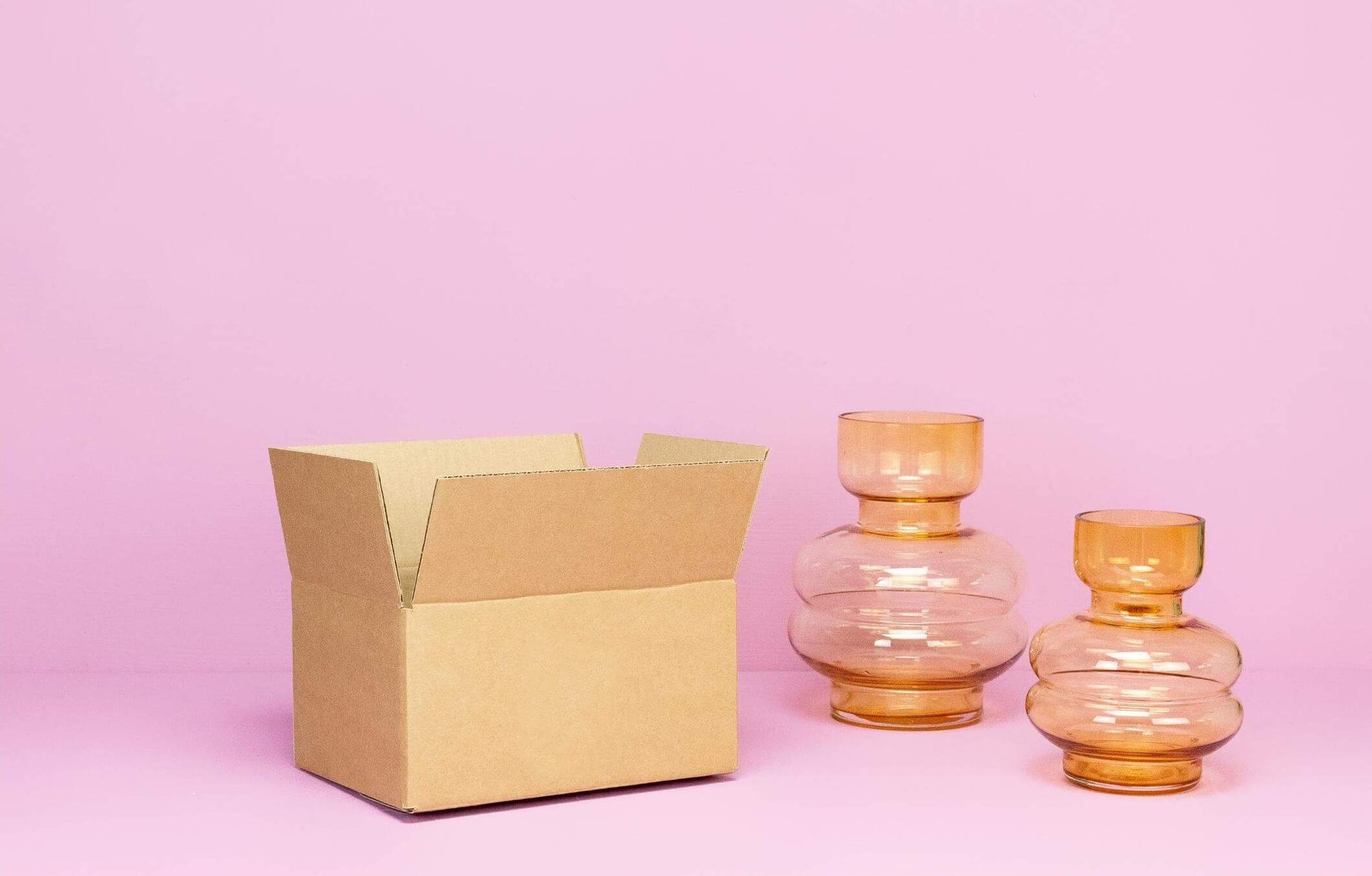

Faltkarton FEFCO 0201 unbedruckt

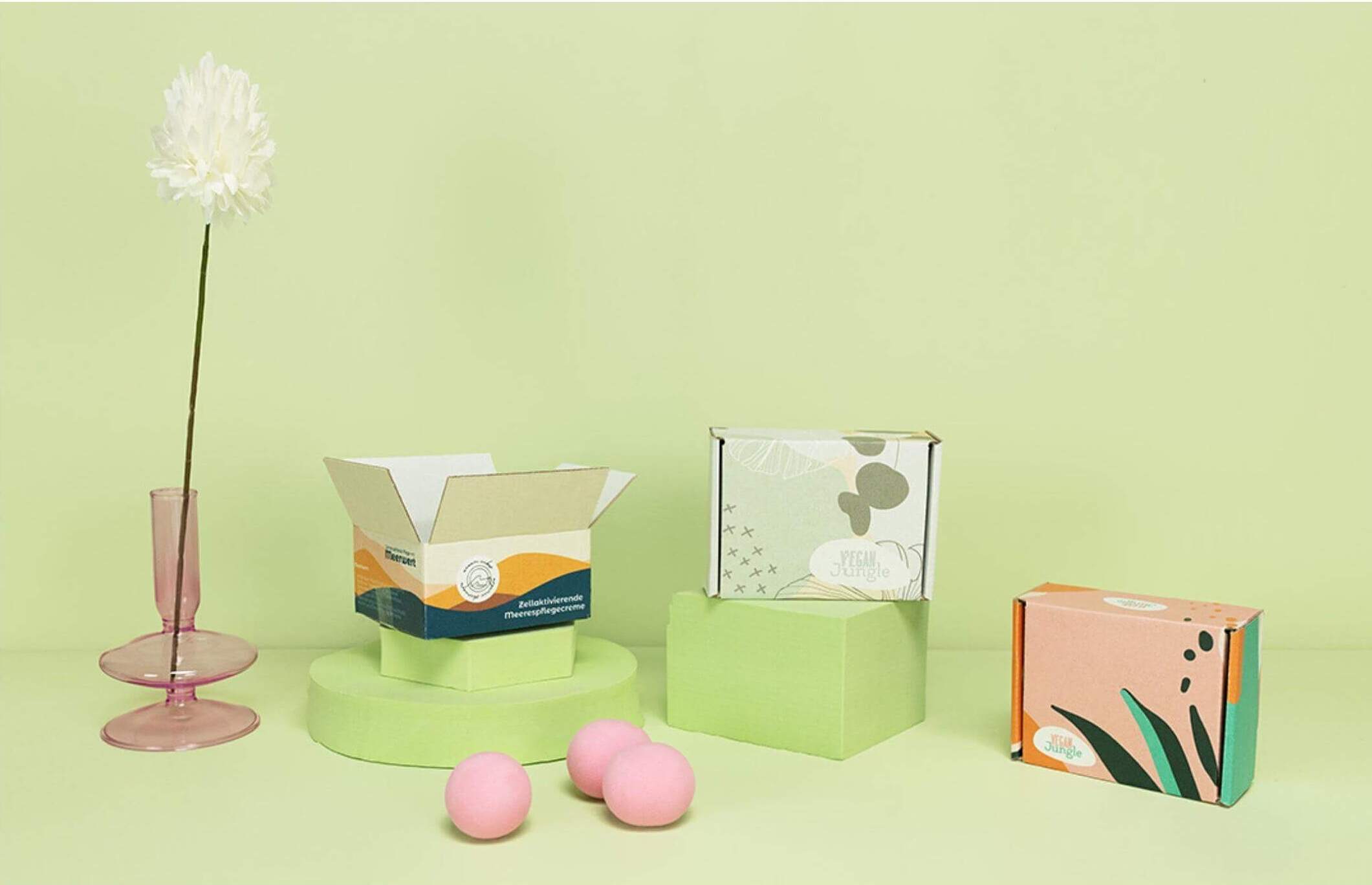

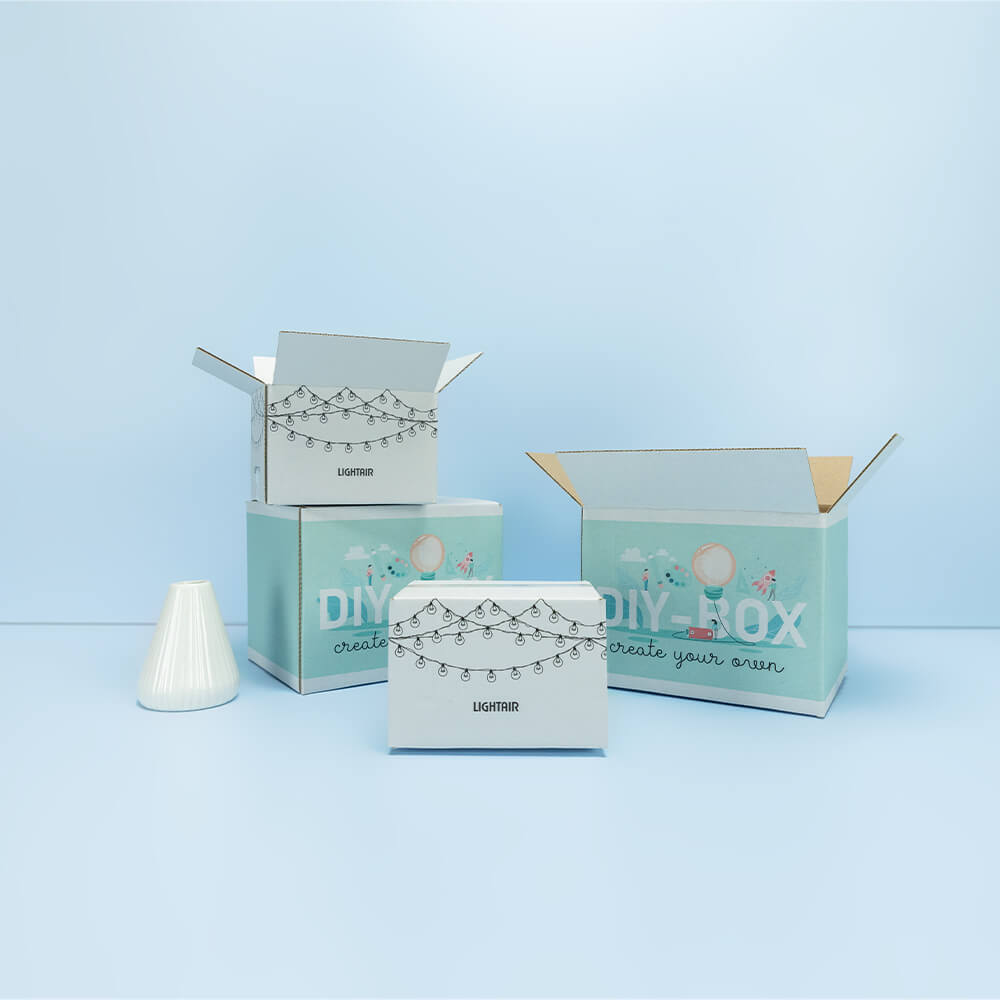

Faltkarton individuell bedruckt

Customisable design options

You have a free hand in designing your FEFCO-0201 folding cartons. You alone decide on the specific format, the print and the finishing - our online configurator simply provides you with the corresponding options. At packaging warehouse you have a wide choice of different materials, so that you can create the perfect packaging for every application.

There is plenty of room for your creative ideas. Because our folding cartons are fully printable. Your designs may therefore also extend to the inner surfaces and flaps of the boxes.

Thanks to digital printing, it is even possible to personalize each individual box, for example with a greeting formula or a short thank-you note with a personal address - in this way, you are guaranteed a great unboxing experience.

Configuration & Design

With our online configurator you have a practical tool at hand that guides you step by step through the configuration of your desired boxes. In addition to the required number of pieces, you also inform us of all the essential specifications of your packaging, from the material to the finishing.
The price always remains transparent and updates automatically with each of your entries. This means that you always have a clear view of the costs during configuration. This also gives you the opportunity to compare the prices of different packaging options.

Materials: Our fine waves

For our FEFCO-0201 folding cartons, we use different corrugations, all of which have their own special characteristics:

  • The E flute is a fine flute with a thickness of 1.5 millimeters. It is particularly suitable for product packaging or weights of up to 7 kilograms. It is available in three color variations - white/white, white/brown and brown/brown (outside/inside).
  • The B flute is a 3 millimeter thick fine flute and carries weights of up to 14 kilograms. This makes it ideal for packaging light to medium-weight products. It is available in three versions, white/white, white/brown and brown/brown.
  • The EB flute is a double flute consisting of one E and one B flute. This results in a thickness of around 4.5 millimeters and a load capacity of up to 32 kilograms. The material is thus perfectly suited for heavy contents. The EB flute is only available in one color, white or brown.

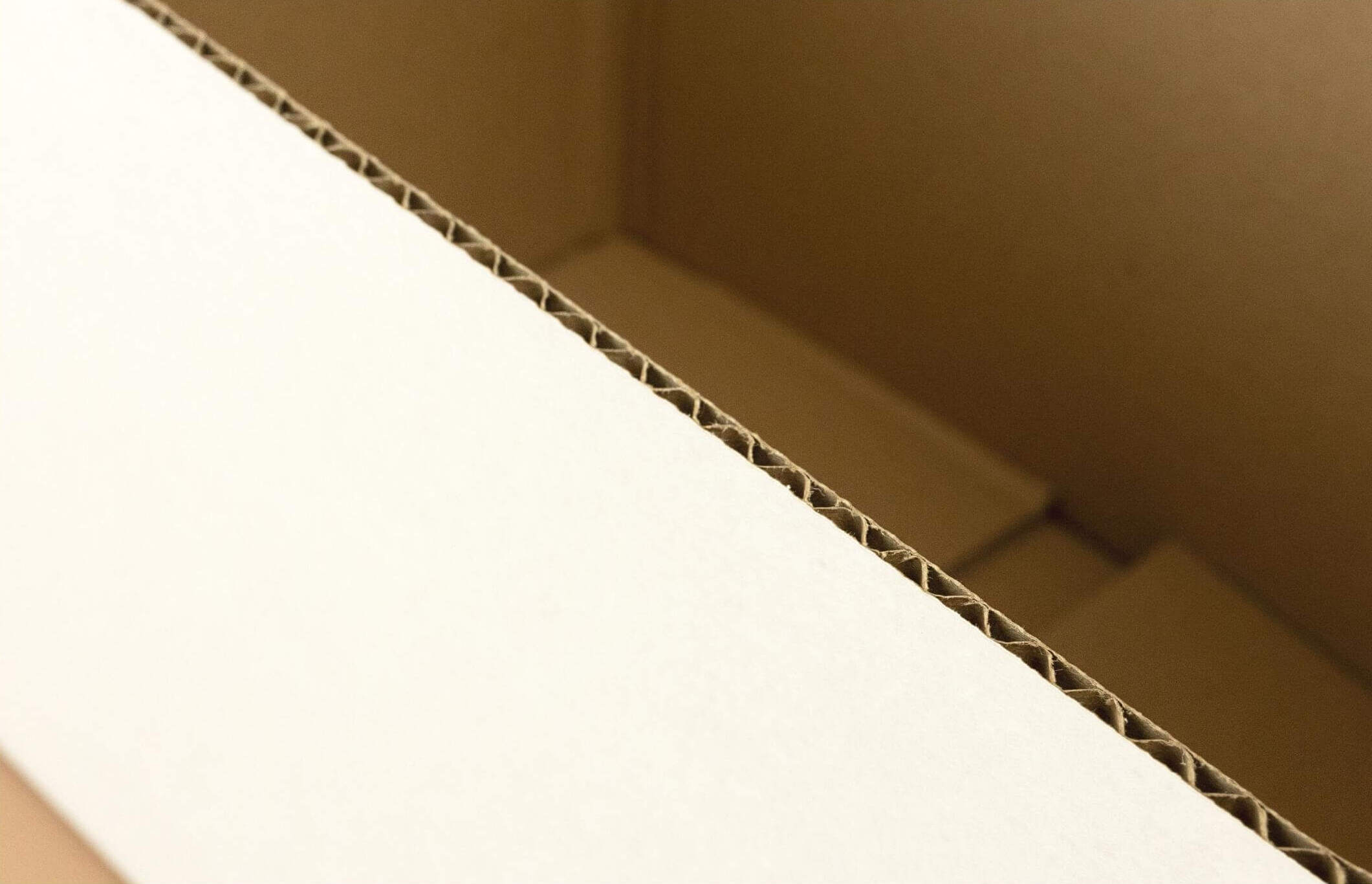

Faltkarton aus Wellpappe

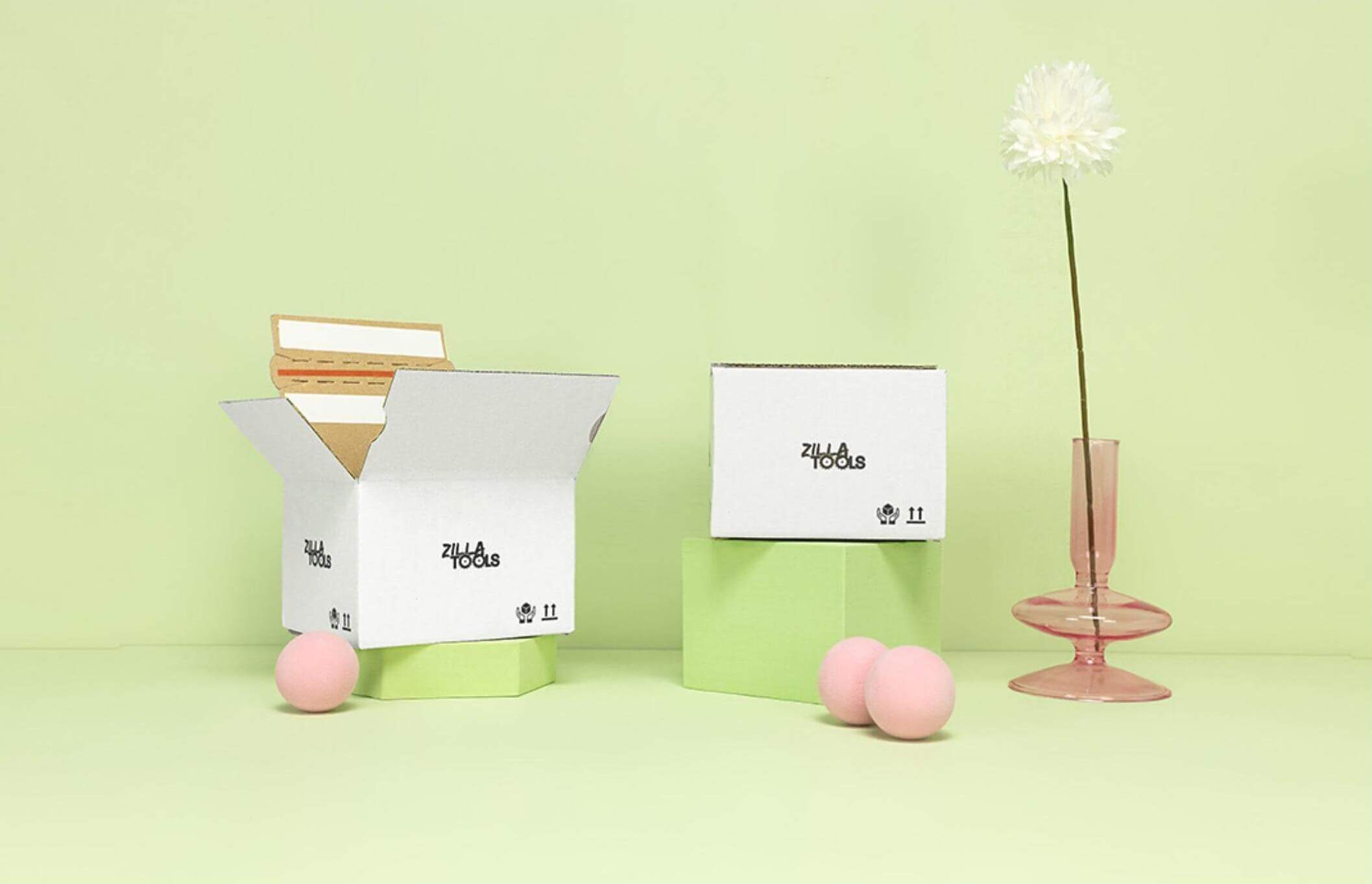

Faltkarton in individuellem Format

Free format: Dimensions accurate to the millimetre

The basic design of the folding cartons is standardized by the FEFCO code. However, the format is variable. You can therefore decide on the dimensions of the cartons individually. However, the following minimum and maximum values must be observed:

  • Length: 50 to 700 mm
  • Width: 50 to 500 mm
  • Height: 50 to 600 mm

Note: For technical reasons, the maximum values mentioned can not always be combined with each other. If your desired dimensions are not realizable, our online configurator will inform you directly.

Printing process: offset or digital

Even though both printing processes deliver an excellent print image, there are smal ldifferences between digital and offset printing. As a standard, we decide which printing process to use based on the size of the print run.

In this way, we can pass on the advantages of both techniques to our customers: The offset process, for example, is more cost-effective and time-efficient for larger print runs. Digital printing, on the other hand, offers a time and cost advantage for short and medium runs.

Another factor is variable print data. Unlike the offset process, digital printing makes it possible to print changing designs within just one print run. Additional tooling costs are not incurred thanks to digital data transmission.

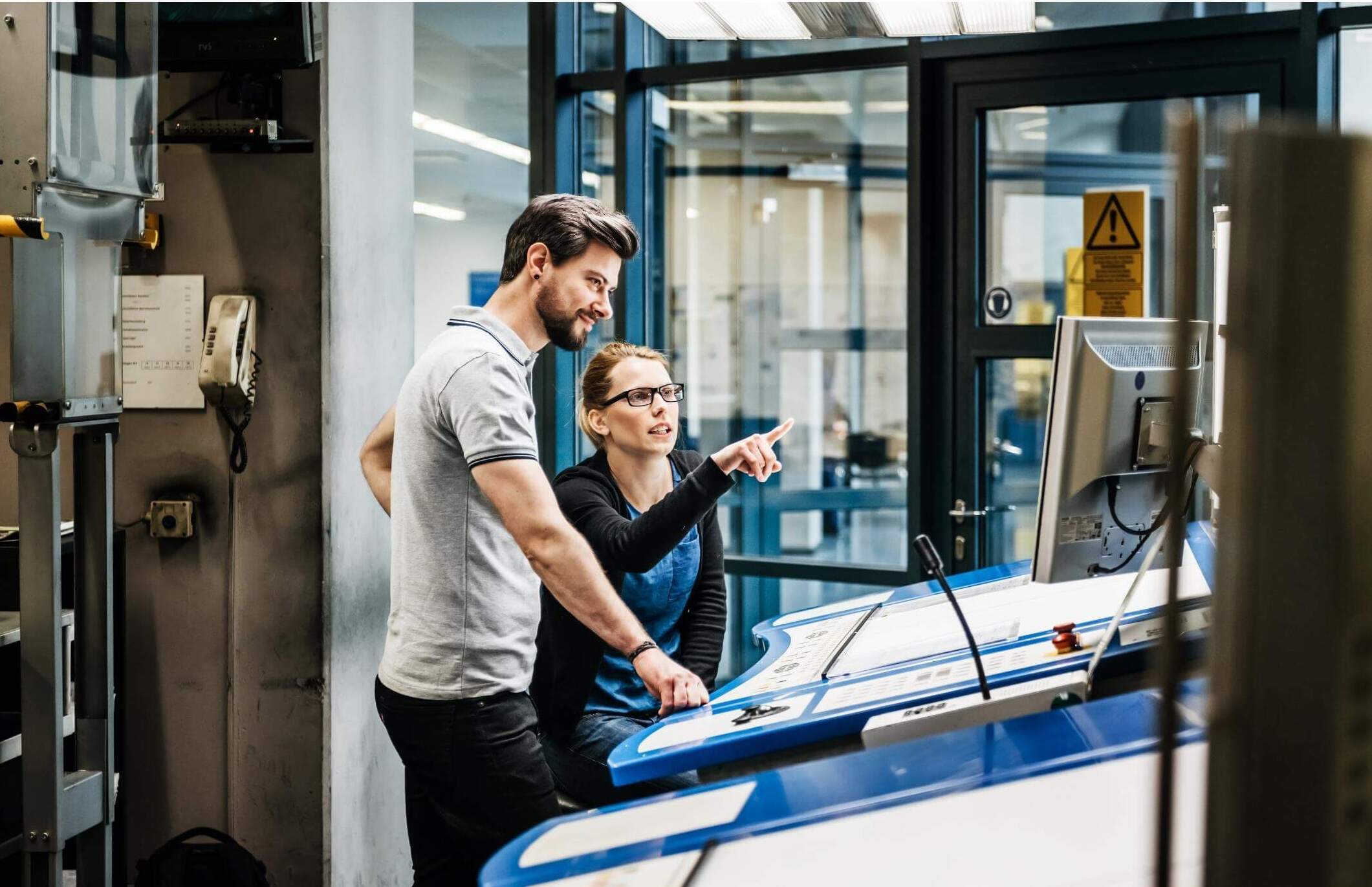

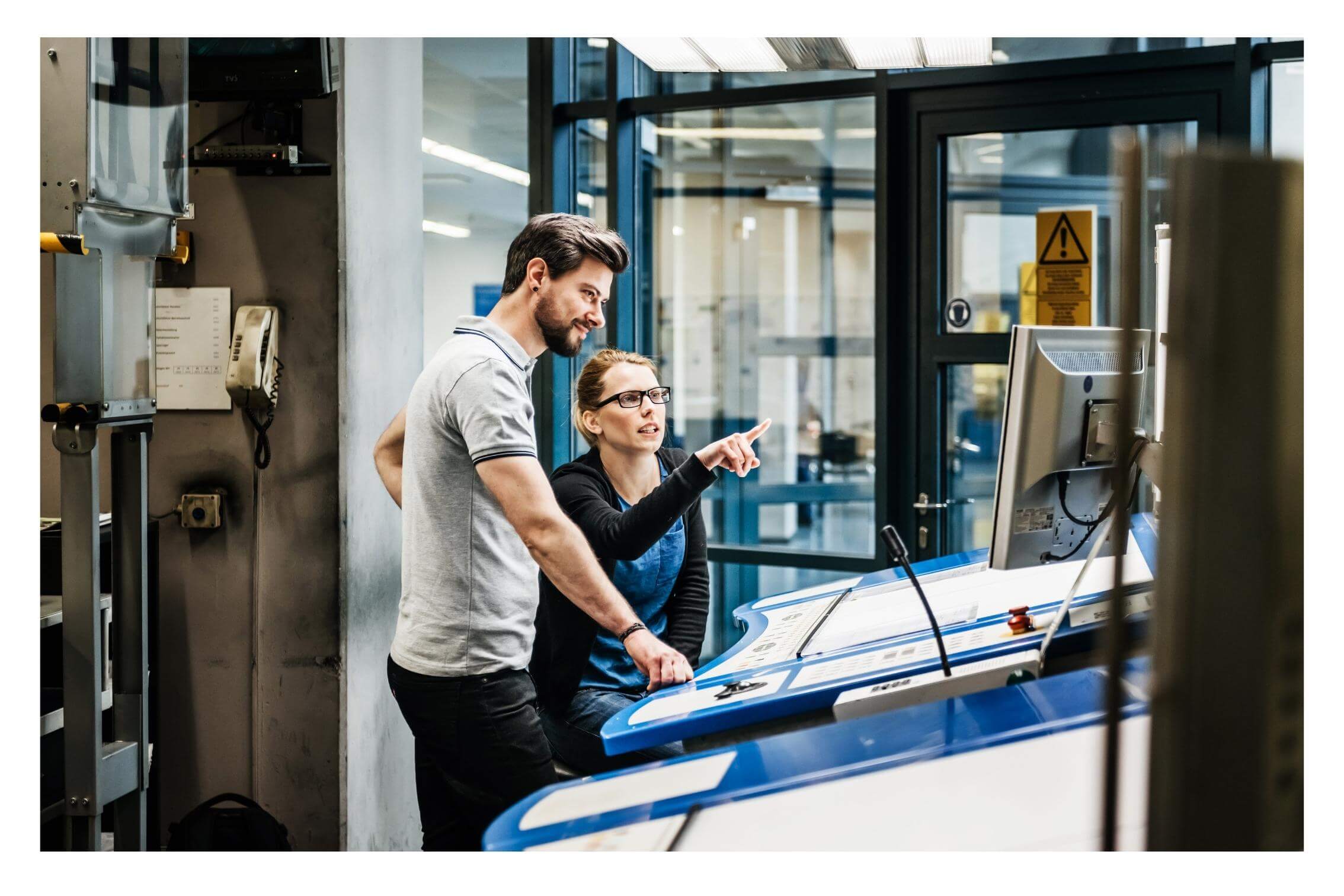

Offsetdruckmaschine

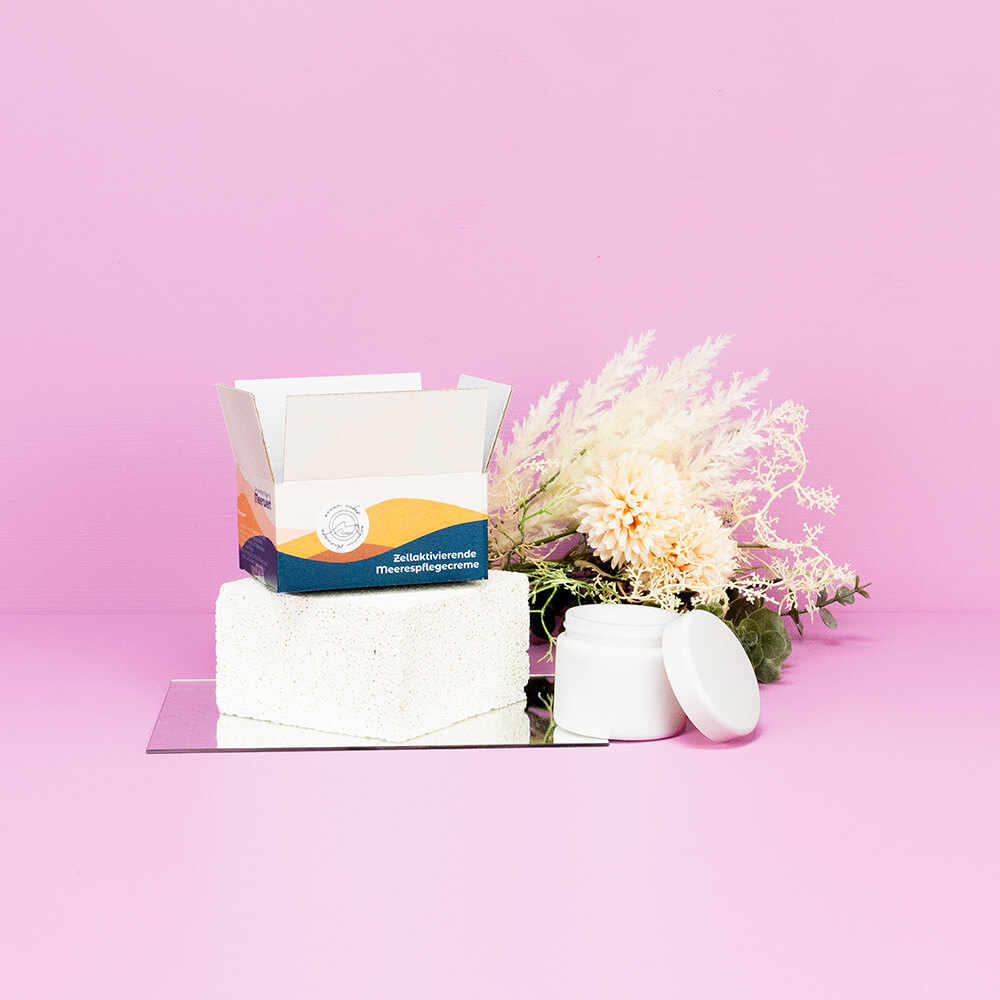

Faltkarton individuell bedruckt

Finishes: varnish or laminate

The surface properties of corrugated cardboard can be optimized very easily with the help of finishing.  One of the most common methods, for example, is the application of a transparent protective coating or lamination. These two finishes offer several advantages at the same time:

On the one hand, coated materials are more resistant to moisture, dirt, scratches and light-induced color fading. On the other hand, coatings and laminates also influence the visible and tangible material properties.

With packaging warehouse, for example, you have a choice of varnishes and laminates with either a matte or glossy look, as well as a soft-touch laminate that provides a particularly pleasant touch sensation.

CREATE PRINT DATA FOR FOLDING CARTONS

1. Configure folding cartons: The first step is to open our online configurator. There you define the order quantity, the dimensions of the cartons and all other desired specifications.

2. Edit print template: Once you have completed your configuration, our print template will be available for you to download. To edit it, you can use any graphic program, such as Adobe Illustrator.

3. Send print data: You have two options to send your print data to us: On the one hand, you can upload them in the shopping cart to send them directly to us together with your order. On the other hand, you can also send it to us at a later time. How to do this, we will tell you automatically by e-mail as soon as we receive your order.

Tip: Follow the link for more information on data structure for folding cartons and shipping boxes. For personal assistance with questions and uncertainties, our team is always available.
